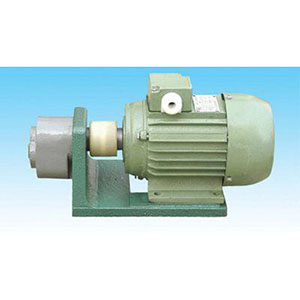

CB-B系列齒輪油泵
CB-B系列齒輪油泵是借一對相互嚙合的齒輪將電動機所輸出之機械能轉換為液壓能的轉換裝置，在機床或其它機械的液壓系統中作為提供一定流量壓力的液壓能源.
概述
CB-B系列齒輪油泵是借一對相互嚙合的齒輪將電動機所輸出之機械能轉換為液壓能的轉換裝置，在機床或其它機械的液壓系統中作為提供一定流量壓力的液壓能源.
應用范圍
結構簡圖
| 型 號 | C | E | H | C1 | C2 | D1 | D | d | E1 | T | b | M | K1 | K2 |
| CB-B2.5 | 79 | 65 | 95 | 25 | 30 | φ35 | φ50 | φ12 | 35 | 30 | 4 | M6 | Z3/8" | Z3/8" |
| CB-B4 | 82 | |||||||||||||
| CB-B6 | 86 | |||||||||||||
| CB-B10 | 94 | |||||||||||||
| CB-B16 | 107 | 86 | 128 | 30 | 35 | φ50 | φ65 | φ16 | 50 | 42 | 5 | M8 | Z3/4" | Z3/4" |
| CB-B20 | 111 | |||||||||||||
| CB-B25 | 115 | |||||||||||||
| CB-B32 | 121 | |||||||||||||
| CB-B40 | 132 | 100 | 152 | 35 | 40 | φ55 | φ80 | φ22 | 55 | 52 | 6 | M8 | Z1" | Z3/4" |
| CB-B50 | 138 | |||||||||||||
| CB-B63 | 144 | |||||||||||||
| CB-B80 | 158 | 120 | 185 | 43 | 50 | φ70 | φ95 | φ30 | 65 | 65 | 8 | M8 | Z1 1/4" | Z1" |
| CB-B100 | 165 | |||||||||||||
| CB-B125 | 174 |
規格及技術性能參數
| 型 號 | 排量 me/r | 壓力 Mpa | 轉速 r/min | 容積效率 nv% | 重量 (公斤) | 驅動功率 (千瓦） |
| CB-B2.5 | 2.5 | 2.5 | 1450 | ≥70 | 1.9 | 0.13 |
| CB-B4 | 4 | ≥80 | 2.8 | 0.21 | ||
| CB-B6 | 6 | 3.2 | 0.31 | |||
| CB-B10 | 10 | 3.5 | 0.51 | |||
| CB-B16 | 16 | ≥90 | 5.2 | 0.82 | ||
| CB-B20 | 20 | 5.4 | 1.02 | |||
| CB-B25 | 25 | 5.5 | 1.30 | |||
| CB-B32 | 32 | ≥94 | 5.7 | 1.65 | ||
| CB-B40 | 40 | 10.5 | 2.10 | |||
| CB-B50 | 50 | 11.0 | 2.60 | |||
| CB-B63 | 63 | 11.8 | 3.30 | |||
| CB-B80 | 80 | 17.6 | 4.10 | |||
| CB-B100 | 100 | ≥95 | 18.7 | 5.10 | ||
| CB-B125 | 125 | 19.5 | 6.50 |
型號意義
性能參數表
| 型 號 | 排量 me/r | 壓力 Mpa | 轉速 r/min | 容積效率 nv% | 重量 (公斤) | 驅動功率 (千瓦） |
| CB-B2.5 | 2.5 | 2.5 | 1450 | ≥70 | 1.9 | 0.13 |
| CB-B4 | 4 | ≥80 | 2.8 | 0.21 | ||
| CB-B6 | 6 | 3.2 | 0.31 | |||
| CB-B10 | 10 | 3.5 | 0.51 | |||
| CB-B16 | 16 | ≥90 | 5.2 | 0.82 | ||
| CB-B20 | 20 | 5.4 | 1.02 | |||
| CB-B25 | 25 | 5.5 | 1.30 | |||
| CB-B32 | 32 | ≥94 | 5.7 | 1.65 | ||
| CB-B40 | 40 | 10.5 | 2.10 | |||
| CB-B50 | 50 | 11.0 | 2.60 | |||
| CB-B63 | 63 | 11.8 | 3.30 | |||
| CB-B80 | 80 | 17.6 | 4.10 | |||
| CB-B100 | 100 | ≥95 | 18.7 | 5.10 | ||
| CB-B125 | 125 | 19.5 | 6.50 |
